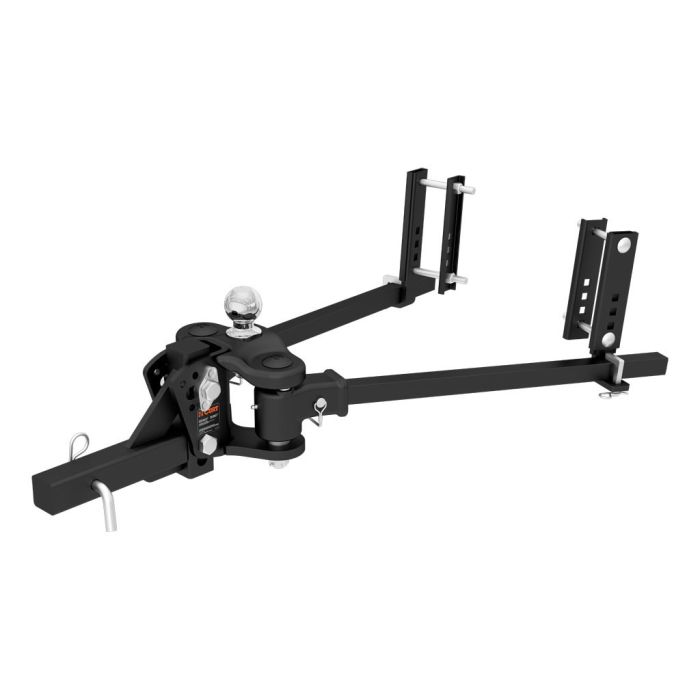

CURT, TruTrack TRUNNION STYLE 1000LB TONGUE/10000LB GTW WEIGHT DISTRIBUTION SYSTEM W/ACTIVE SWAY CONTROL

$906.95
In stock
SKU
17500
Weight Distribution Hitch; TruTrack; Trunnion Bar; Fits 2 Inch Receiver; 1000 Pound Tongue Weight; 10000 Pound Gross Trailer Weight; With 12 Inch Adjustable Shank; With Integrated Sway Control; With 2-5/16 Inch Ball; Powder Coated

WARNING: If this box/packaging has been opened or altered in any way, this item is not returnable.





Attributes

  • Type: Trunnion Bar
  • Gross Trailer Weight (LB): 10000 Pound
  • Gross Tongue Weight (LB): 1000 Pound
  • Color/ Finish: Black Powder Coated
  • Drop (IN): 2 Inch
  • Rise (IN): 2 Inch
  • Includes Sway Control: With Built-In Sway Control
  • Includes Shank: Yes
  • Shank Length: 12 Inch
  • Includes Ballmount: Yes
  • Includes Ball: Yes
  • Universality: Fully Universal
  • Material: Steel


Product Description

TruTrack uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. The TruTrack also features a unique spring and cam system that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened components are less subject to wear and last longer than competitor models. Setting up the TruTrack WD hitch is faster and easier. While other WDs use washers and blind guesswork to find the proper tilt, the TruTrack employs interlocking nuts and six preset holes to provide specific angles of tilt and a simpler adjustment method. Unlike most WD hitches that require you to partially disassemble the hitch head to make adjustments, the interlocking nuts can easily be accessed on the outside of the head, making installation fast and adjustment easy.


Features & Benefits

  • Integrated Sway Control Actively Resists Sway And Levels The Vehicle And Trailer
  • Welded Head With Cast Pieces Provides Solid Spring Bar Attachment
  • Cam Springs Build Up Pressure For Integrated Sway Control
  • Fixed Support Brackets Hold The Spring Bars In Place Laterally And Vertically, Brackets Use Friction To Resist Lateral Movement, Replacing A Sway Control
  • Equipped With Trunnion-Style, Forged Steel Spring Bars
  • Hex Castle Nut Allows For Easy Adjustment For Different Trailers
  • Durable Carbide Powder Coat Finish And Industrial Chrome-Plated Cam Components
  • 12 Inch Adjustable Shank Fits 2 Inch X 2 Inch Receiver Tube Openings, Tilt Adjustment Feature Simplifies Setup And Installation
  • Limited 10 Year Warranty
More Information
Weight 121.300000
mfg_part_number 17500
upc 612314175000
additional handling Yes
oversized Yes
