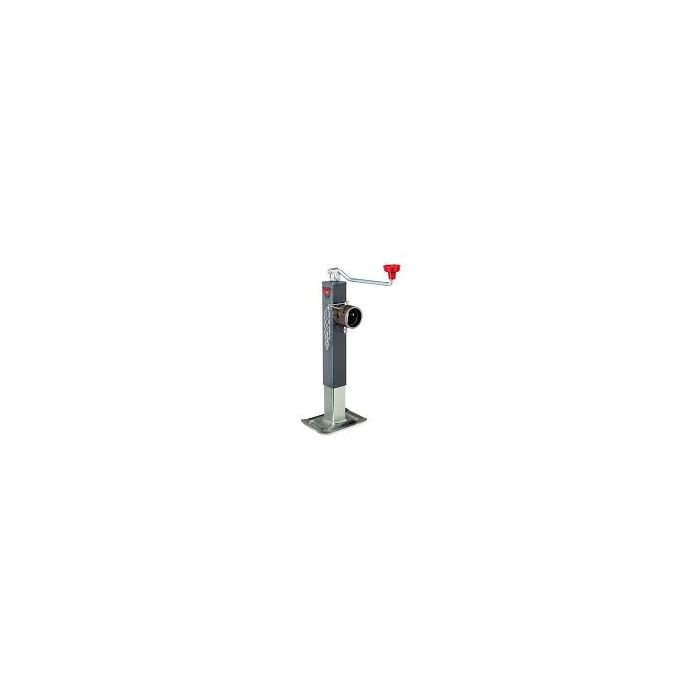

TRAILER JACK SWIVEL MOUNT SQUARE TUBE TOP WIND; 8000 LBS SUPPORT; W MOUNT
$156.26
In stock
SKU
190705
Trailer Tongue Jack; Manual Square Topwind Swivel Jack; 5000 Pound Lift/ 8000 Pound Support Capacity; 10 Inch Travel; 11.41 Inch Retracted X 21.41 Inch Extended Height; 4-1/4 Inch Clearance; Painted Outer/ Zinc Plated Inner Tube; With Bracket
Attributes
- Operation Type: Manual
- Capacity: 5000 Pound
- Maximum Lift: 10 Inch
- Mounting Type: Weld-On
- Type: Square Topwind
- Number Of Wheels: Without Wheel
- Color/ Finish: Gray Painted
- Swivel: Yes
- Retracted Height: 11.41 Inch
- Extended Height: 21.41 Inch
- Clearance: 4-1/4 Inch
- Material: Steel
- Estimated Install Time (Hours): 0.5
- Marine: Yes
Product Description
Bulldog’s 8,000 Pounds support capacity square jack serves the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. We have packed “Big Jack Power” into this compact design. The compact design of these jacks makes them ideal for tight-fitting applications where 3 Inch and 4 Inch square tube jacks are too big. This is a perfect transition from Bulldog’s round jack product line.
Features & Benefits
- Zinc-Plated Inner Tube And Drop Leg
- 4.7 Inch Outer/Inner Tube Overlap Results In Optimal Side Load Performance
- 5/8 Inch Screw Stem Provides Insurance Against Screw Stem Twisting Off
- Patented Screw Nut Stop Prevents Screw And/Or Nut Damage When Jack Is Fully Extended
- Topwind Models - Bushing In Top Cap, Eagle Claw Grip
- 1/4 Inch Cross Pin Connects Gear Train To Screw Stem - Guards Against Shearing Jack Pin
- Limited 5 Year Warranty
| Weight | 18.500000 |
|---|---|
| mfg_part_number | 190705 |
| upc | 783192023582 |
| additional handling | Yes |
| oversized | yes |
