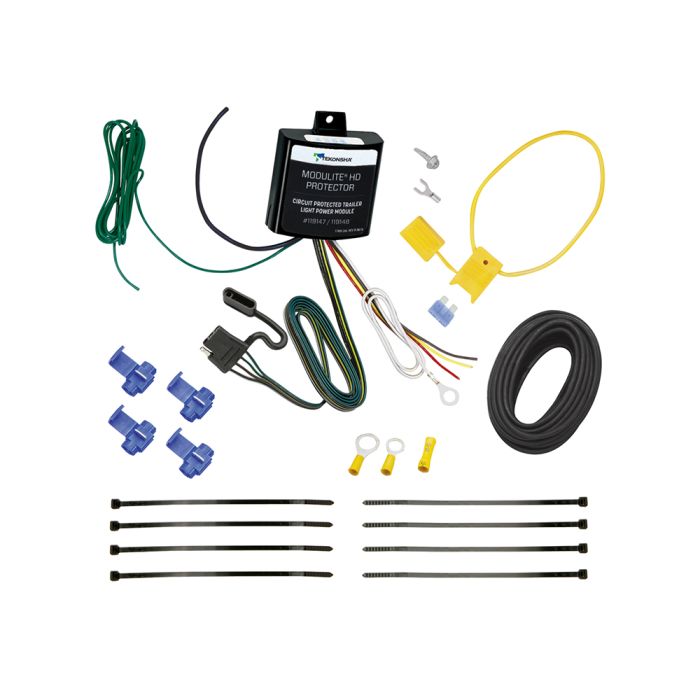

Tail Light Converter; Direct Battery Powered; To Turn Trailer Lighting Functions On and Off; With Circuit Protection; Rated For Up 4.2 Amps For Turns/ Stops Circuits And 7.5 Amps For Taillight Circuit; Does Not Include Circuit Probe

ModuLite® all the additional power required to supply the trailer lights is supplied directly from the battery. Only a small amount of power is required from the fuse panel, turn signal switch, taillight harness and lamp out sensor if so equipped, to signal when to illuminate the trailer lights. Features & Benefits The Unit Is Rated For Up To 4.2 Ampere For Turns Or Stops Circuits And 7.5 Ampere For The Taillight Circuit Draws Power Directly From The Vehicle Battery And Uses Less Than 5 Milli Ampere Of The Vehicle Circuit For Sensing To Turn The Trailer Functions On And Off Will Work With Either LED Or Incandescent Bulbs. Has Integrated Re-Settable Short Circuit And Overload Protection To Safeguard Itself And The Tow Vehicle From Shorts And Installation Wiring Mishaps Designed Not To Send Feedback Through The Vehicle Circuits. The Trailer Brakes Will Override The Hazard Lamps When The Brake Is Activated The Taillight Circuit Has Been Upgraded To Work With Pulse Width Modulation (PWM) Vehicles This Will Allow The Converter To Turn On Fully And Gives The Trailer Lights Full Brightness During Activation Can Be Used On A 2 Wire Or 3 Wire System. All Solid State Components In Potted Encapsulation
