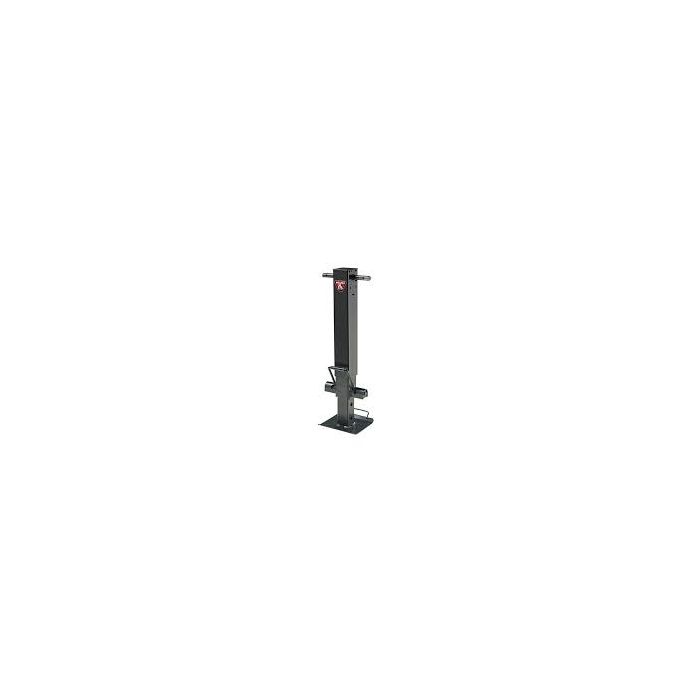

HD SQUARE JACK/ 25/000 LBS. STATIC/ 12/500 LBS. LIFT/ DROP LEG/ TWIN CAM
$331.26
In stock
SKU
182700
Trailer Tongue Jack; Twin Cam ™; Manual Square Sidewind Drop Leg Jack; 12500 Pound Lift/ 25000 Pound Static Capacity; 12-1/2 Inch Travel; 27-1/2 Inch X 53-1/2 Inch Extended Height; Black; Steel; Without Bracket; Without Crank




Attributes
- Operation Type: Manual
- Capacity: 12500 Pound
- Maximum Lift: 12-1/2 Inch
- Mounting Type: Weld-On
- Type: Square Sidewind
- Number Of Wheels: Without Wheel
- Color/ Finish: Black Painted
- Swivel: No
- Retracted Height: 27-1/2 Inch
- Extended Height: 53-1/2 Inch
- Clearance: Adjustable
- Material: Steel
- Estimated Install Time (Hours): 0.5
- Marine: Yes
Product Description
Bulldog Trailer Jacks are the unquestionable leader in the trailer industry. Since 1919, Bulldog has been manufacturing the industry’s most trusted products for heavy duty applications. Whether it’s for livestock trailers, utility rigs, or cargo haulers, every rugged and proven Bulldog product is certified ASABE S485 compliant – the ”gold standard” in proven performance for telescopic screw-type jacks. Bulldog Trailer Jacks offer you proven quality, performance, and versatility. Our wide range of products has you covered whatever your application. For heavy-duty loads where a combination of speedy operation and a variable cranking ratio is needed, Bulldog 2-Speed Square Jacks are a good solution.
Features & Benefits
- Easy Access Grease Fittings Allow For Lubrication Of Internal Jack Gears And Jack Screw/Nut
- Patented Screw Stop Prevents Screw And/Or Nut Damage When The Jack Is Fully Extended, Keeping The Screw In Good Condition For Maximum Screw/Nut Cycle Life
- Patented Assembly Design Makes The Gears, Jack Screw/Nut, And Other Internal Components Easily Serviceable. 12.5 Inch Of Screw Travel
- Drop Leg Features 5 Positions With 13.5 Inch Of Adjustment
- 10 Inch X 10 Inch Heavy Gauge Steel Foot Plate
- Heavy-Duty 1 Inch Diameter Steel Input Shaft
- Spring Return And Non-Spring Return Drop Legs Available
- Limited 5 Year Warranty
Weight | 62.000000 |
---|---|
mfg_part_number | 182700 |
upc | 016118113723 |
additional handling | Yes |
oversized | yes |
