Go Power! 2000 WATT INVERTER/CHARGER W/REMOTE

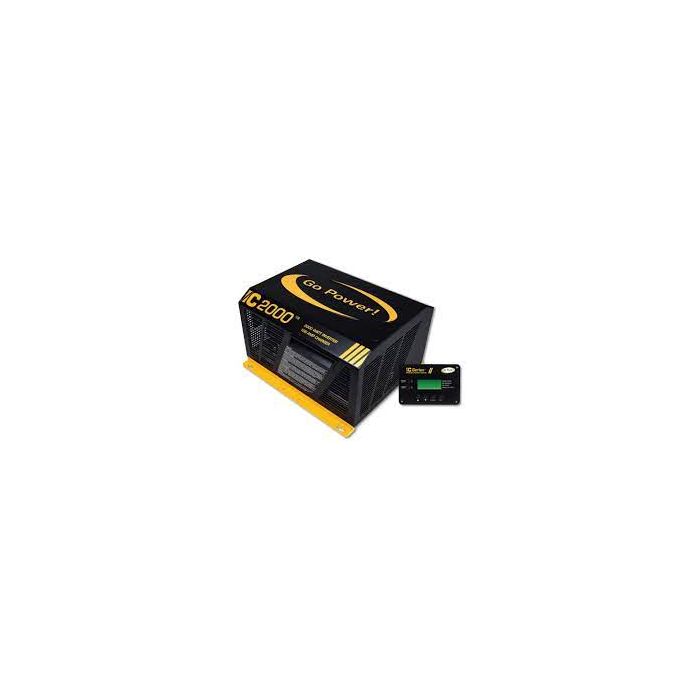

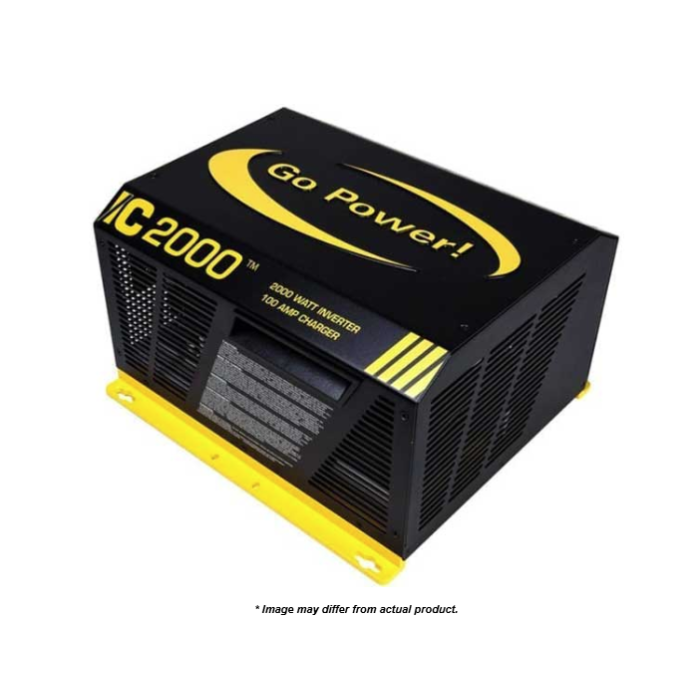

Go Power! IC Series 2000-Watt Inverter Charger with Remote

Pure Sine Wave

Inverter/Charger

2,000 Watt

• Go Power! IC Series Inverter Charger with Remote
• Go Power! Part #: GP-IC2000-12-PKG
• Inverter Output Power (up to 40°C): 2000W
• Inverter Surge Power (100 Milliseconds): 4000W
• Inverter Surge Power (5 Seconds): 3400W
• Inverter Peak Output Current: 35A
• Inverter Continuous Output Current: 17A
• Inverter: Output Voltage: 115VAC
• Inverter Output Frequency: 60 Hz ±0.1Hz
• Inverter Output Waveform: Pure Sine Wave
• Inverter Efficiency (Peak): 90%
• Inverter DC Input Voltage Range: 9-17 VDC
• Inverter Maximum Continuous DC Input Current: 283 ADC
• Inverter No Load Power Consumption: 25W (Normal Mode) / 5W (Sleep Mode)
• Inverter AC Connections: Split Phase In/Dual Out, Dual In/Dual Out
• Charger Input Voltage Nominal: 120 VAC
• Charger Input Voltage Range: 80-140 VAC
• Charger Input Current: 15A
• Charger Power Factor Correction: 0.97 Typical
• Charger Optimal Efficiency: > 85%
• Charger Control: 3 Stage with Manual Equalize
• Charger Output Voltage: 5 - 16 VDC
• Charger Output Current: 100 ADC
• Charger Change Temperature Compensation: Remote Battery Sensor
• Transfer Time: 16ms
• Transfer Relay Rating: 2 Legs at 50A Each (240V Split-Phase)
• Temperature: -20°C to 60°C (Over 40°C Output Derates)
• Humidity: 0-95% RH Non Condensing
• Dimensions: 13.7"L x 12.6"W x 8.07"H (14.9" With Terminals)
• Net Weight (Without Remote): 38.71 lbs.
• Regulatory & Safety Specifications: UL Certified to 458 & 1741 (with Marine Supplement) & to CSA 22.2 NO. 107.1-01 FCC Path 15, Class B
• Specifications Subject to Change Without Notice

The IC Series 2000-Watt Inverter Charger is an inverter, battery charger, and transfer switch in one compact unit and it comes with a remote. The 3-in-1 system saves space and simplifies installation by reducing the number of devices and cables to install. While most inverter chargers offer a 30 amp transfer switch, the IC2000 provides two 50 amp legs. That means when connected to shore power 50 amp service (240V), you can draw up to 12,000 watts of power! The IC2000 is also compatible with 30 amp service. The IC2000 includes a battery temperature sensor on a 25’ cable. One end mounts onto your battery and the other end plugs into the inverter charger. The temperature data is sent to the IC2000 which automatically adjusts voltage to maintain proper and healthy charging. It comes with the IC Series Digital Remote Panel for complete control and monitoring of your inverter charger The remote has an easy-to-read, 4 line digital display panel. The digital display and menus offer simple operation and use while providing detailed operational data about your inverter charger. You can change settings and modes of operation; view real-time status of battery charging activity, inverter AC input, and inverter status; and monitor inverter/charger health and temperature.
