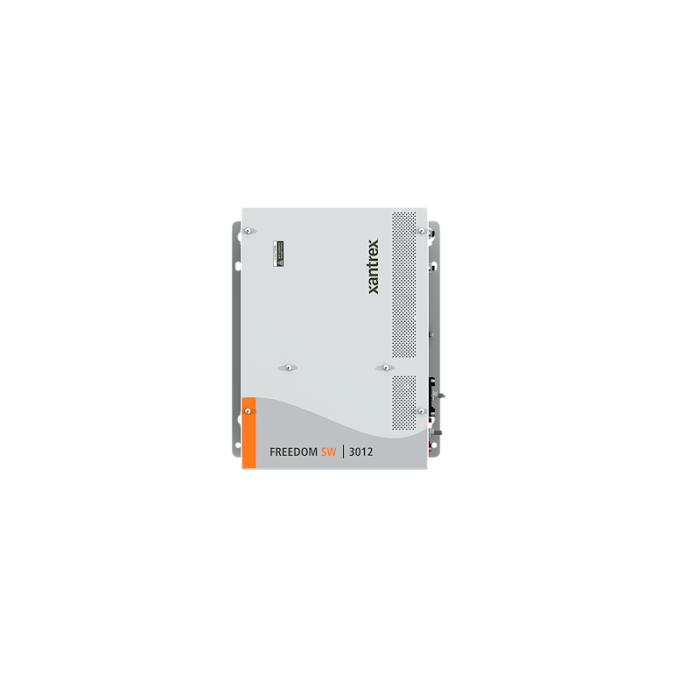

Xantrex, FREEDOM SW 3012 INV/CHGR - TRUESINE 3000W, 150A, 120AC/12VDC, HARDWIRE

$3,237.85
In stock
SKU
815-3012
Power Inverter/ Battery Charger; Freedom SW Series; For 12 Volt Batteries; 12 Volt DC Input Voltage; 3000 Watt Continuous Output/ 6000 Watts Surge; 150 Amp Output Current; 90 Percent; -4 To 140 Degree Fahrenheit; Standard: ETL listed to CSA 107.1/ UL458/ ABYC E11/ A-31/ A-32; Pure Sine Wave Output; Split Phase Input/ Dual Output; With Battery Over-Voltage And Under-Voltage Protection/ Over-Temperature Shutdown Protection/ Automatic Overload Protection/ Short-Circuit Protection/ Remote Battery Sensor/ Transfer Switch/ Battery Temperature Sensor/ Power Factor Corrected 3-Stage Charger; Optional Remote Panel (Sold Separately); 7-3/4 Inch Height x 13-1/2 Inch Width x 15-1/4 Inch Length

Attributes

  • Compatibility: 12 Volt Batteries
  • Smart Technology Compatible: Not Compatible With Smart Technology
  • Continuous Power Output: 3000 Watt
  • Input Voltage: 12 Volt DC
  • Peak Power Output: 6000 Watt
  • Ampere Rating: 150 Amp
  • Efficiency: 90 Percent
  • Operating Temperature: -4 To 140 Degree Fahrenheit
  • Standards: ETL listed To CSA 107.1/ UL458/ ABYC E11/ A-31/ A-32


Product Description

The second generation 2000 Watts model has been completely redesigned to include many of the same great features found in its high power counterpart. A key feature enhancement is ‘Generator Support Mode’ which enables the Freedom SW to supplement a generator¹ when AC loads exceed the generator’s capacity. The new generation models also feature improved AC transfer or AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 Milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.


Features & Benefits

  • Battery Over-Voltage And Under-Voltage Protection
  • Over-Temperature Shutdown
  • Automatic Overload Protection
  • Short-Circuit Protection
  • Integrated, Resettable AC Breakers
  • Pure Sine Wave Output To Operate Sensitive Electronics
  • Parallel And Series Stacking Capability
  • Built-In Transfer Switch Automatically Transfers Between Inverter Power And Incoming AC Power
  • Temperature Compensated Charging For A Variety Of Climate Conditions
  • Limited 2 Year Warranty
More Information
Weight 77.000000
mfg_part_number 815-3012
upc 008153012420
additional handling Yes
oversized Yes
