0717 YARIS SDN/HBACK; 0814 SCION XD TOW BAR MNTG BRKT KIT
$437.06
In stock
SKU
521181-5
07-17 YARIS SDN/HBACK; 08-14 SCION XD TOW BAR MNTG BRKT KIT, Vehicle Baseplate; EZ Series; Removable Tabs; With Safety Cable Hooks; With 1-1/2 Inch x 1/2 Inch Carriage Bolt/ 1/2 Inch Lock Washer/ 1/2 Inch Nut/ 4 Inch x 7/16 Inch Bolt/ 7/16 Inch Lock Washer/ 7/16inch Flat Washer/ 10 Millimeter x 1.25 x 35 Millimeter Bolt/ 10 Millimeter Lock Washer/ 10 Millimeter Flat Washer/ Cable Connector/ 8 Inch Length Safety Cable/ 1 Main Receiver Brace Weldment/ 2 Arms Weldment/ 2 Rear Weldment/ Backing Plate
Attributes
- Tab Type: Removable
- Number Of Lugs: No Lugs
- Material: Steel
- Color: Black
- Includes Safety Cable Hooks: Yes
- Estimated Install Time (Hours): 3
Product Description

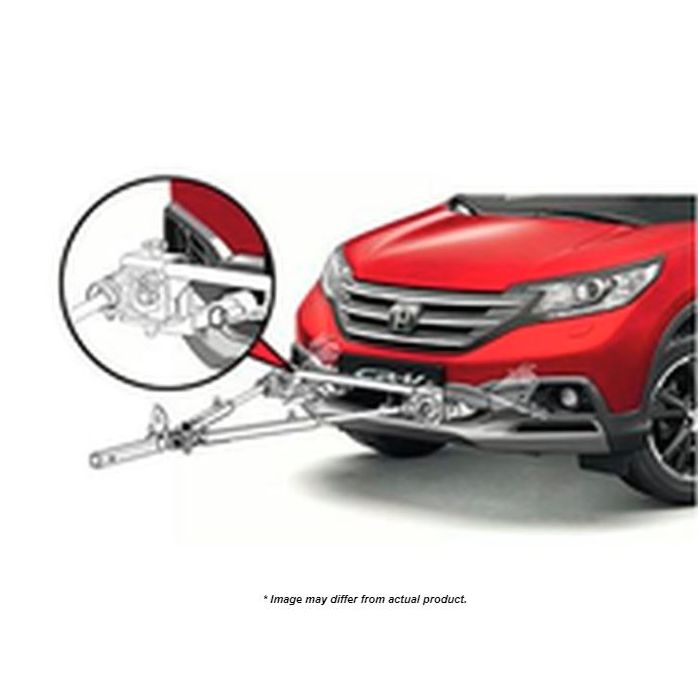

All EZ and EZ2 series brackets are easy to attach and remove — simply insert the visible portion of the brackets (the 'front arms') into the receiver and rotate.
Features & Benefits
- Virtually Invisible — Improved Aesthetics
- Made Of Computer-Cut, All-Steel Components For Exceptional Strength
- Installs Through The Grille — No Scraping Brackets In Dips Or Against Curbs
- Easy To Install — ROADMASTER Brackets Use Existing Attachment Points On The Vehicle's Undercarriage — No Welding
- Limited 1 Year Warranty
Double Check all Measurements before ordering.
- 2008-2014 Scion xD
- 2008 Scion xD
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- Requires Some Trimming Of The Air Dam
- 2009 Scion xD
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- Requires Some Trimming Of The Air Dam
- 2010 Scion xD
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- Requires Some Trimming Of The Air Dam
- 2011 Scion xD
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- Requires Some Trimming Of The Air Dam
- 2012 Scion xD
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- Requires Some Trimming Of The Air Dam
- 2013 Scion xD
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- Requires Some Trimming Of The Air Dam
- 2014 Scion xD
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- Requires Some Trimming Of The Air Dam
- 2008 Scion xD
- 2007-2015 Toyota Yaris
- 2007 Toyota Yaris Sedan
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2007 Toyota Yaris Hatchback
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2008 Toyota Yaris Hatchback
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2008 Toyota Yaris Sedan
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2009 Toyota Yaris Sedan
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2009 Toyota Yaris Hatchback
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2010 Toyota Yaris Sedan
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2010 Toyota Yaris Hatchback
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2011 Toyota Yaris Sedan
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2011 Toyota Yaris Hatchback
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2012 Toyota Yaris 4 Doors
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2012 Toyota Yaris 2 Doors
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2013 Toyota Yaris 2 Doors
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2013 Toyota Yaris 4 Doors
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2014 Toyota Yaris 4 Doors
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2014 Toyota Yaris 2 Doors
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2015 Toyota Yaris 4 Doors
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2015 Toyota Yaris 2 Doors
- Requires Some Trimming Of Bumper (Fascia, Plastic, Grill)
- 2007 Toyota Yaris Sedan
| Weight | 54.000000 |
|---|---|
| mfg_part_number | 521181-5 |
| upc | 758306308602 |
| additional handling | yes |
| oversized | yes |
